Aluwall

Name: Aluwall
Availability: InStock

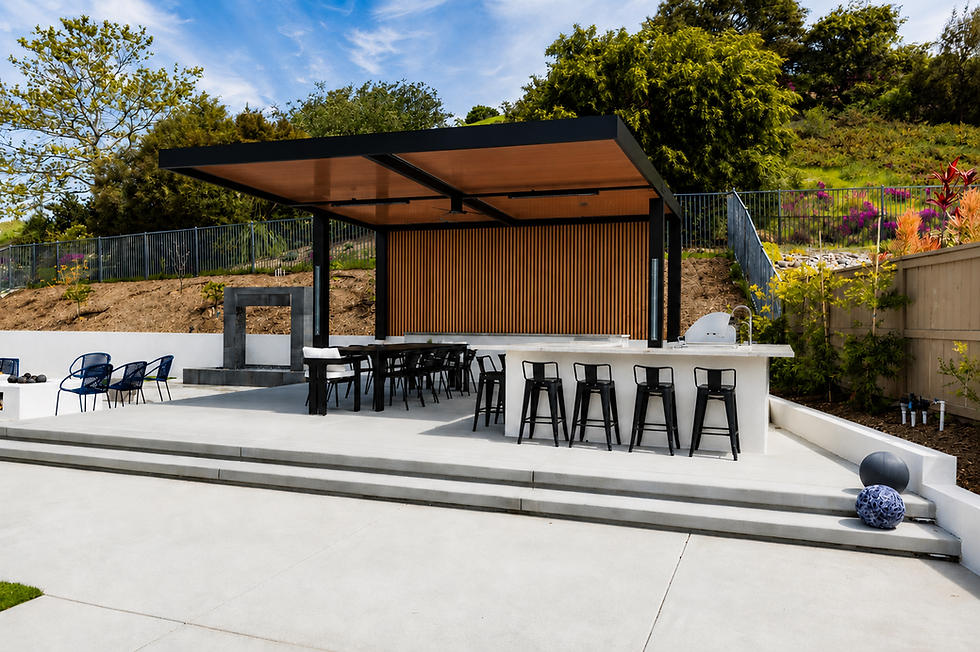

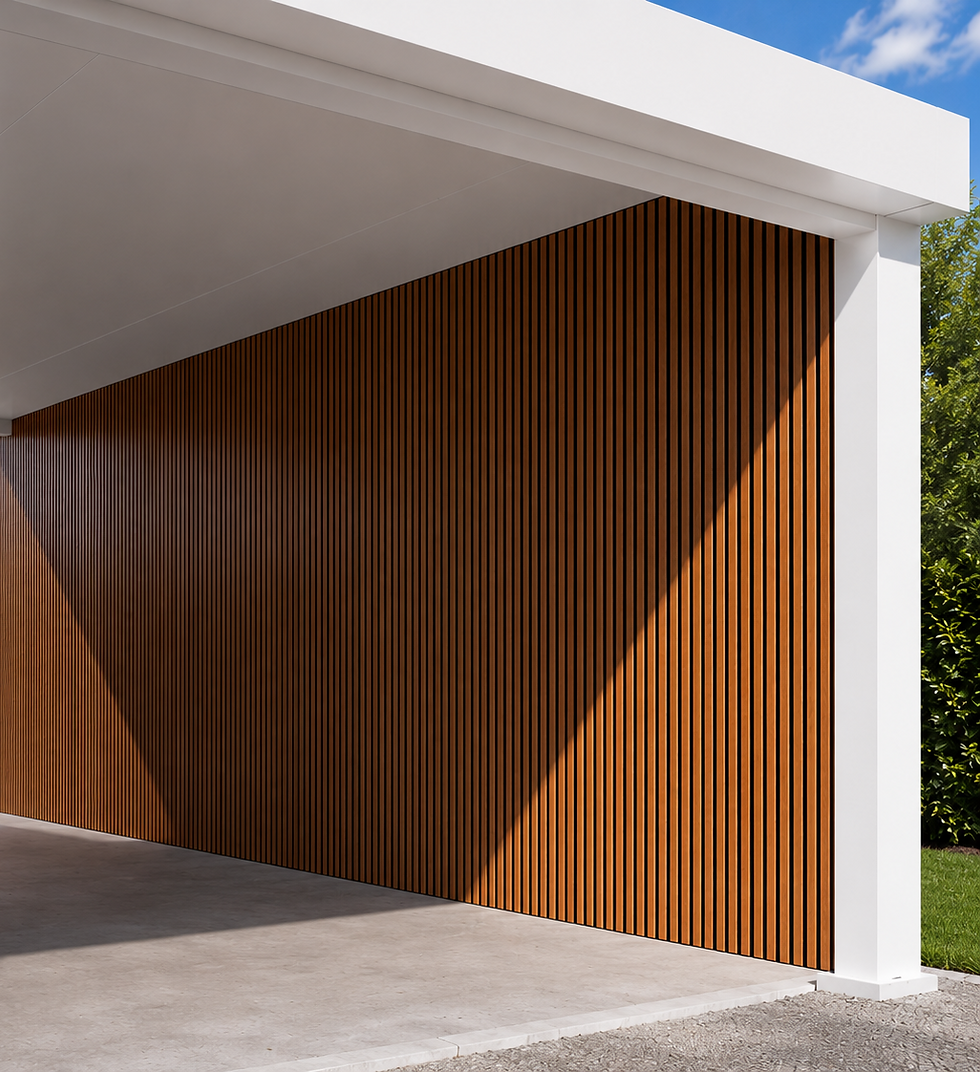

ALUWALL® is an insulated aluminum privacy wall panel system engineered for outdoor structures, including pergolas, carports, gazebos, and sheds.

Designed to create durable partitions and enclosures, each composite panel features a specialized insulation core permanently bonded between two alloyed aluminum facings using structural two-component polyurethane. Protected by high-durability coatings, the system delivers an elegant, low-maintenance wall solution with a built-in thermal barrier and a 10-year warranty.

Thickness*

1"

1.5"

2"

2.5"

3" (maximum standard thickness)

Color & Texture*

RAL 9016 Matte White

RAL 9010 Grainy White

RAL 9010 Gloss White

RAL 7024 Graphite Grey

RAL 7040 Matte Grey

RAL 8004 Terracotta

Golden Oak (Wood grain finish)

Choose between two high-performance insulation core configurations depending on project specification and post-processing requirements:
XPS core (extruded Polystyrene): CFC-free insulation core providing enhanced thermal resistance. Available thicknesses: 28 mm, 32 mm, and 52 mm.
PET core (recycled Polyethylene Terephthalate): Patented core engineered ready for custom powder-coating with an integrated epoxy primer finish. Available thicknesses: 28 mm and 32 mm.
ALUWALL® provides distinct surface patterns on one or both sides of the panel to match surrounding architectural styles:
Smooth finish: Minimalist, sleek architectural aesthetic.
Vertical grooves: Linear vertical styling available in standard manufactured lengths of 2250 mm, 2500 mm, 2750 mm, and 3000 mm.
Horizontal grooves: Linear horizontal styling.
Louvered effect: Traditional shutter-style design featuring 49.3 mm louvers, available in standard lengths of 2500 mm and 3000 mm.
Provencal groove: Classic European tongue-and-groove profile.
Alloyed aluminum facings: Precision structural exterior skins.
Assembly bonding: Heavy-duty structural polyurethane two-component bonding.
Fire resistance: Certified M1 fire rating profile.
Standard panel width: 1195 mm (approx. 3.92 ft).
Structural height limitation: Panels can be installed to a maximum structural wall height of 3 meters (approx. 9 ft 10 in) between two fixing points located at the foot and the head of the panel
To maintain crisp, flat surfaces across long wall runs, smooth-faced and vertically grooved ALUWALL® panels are manufactured with a specialized joint detail:
3 mm x 20 mm notched edge: Built directly into the panel boundaries, this engineered notch allows for the seamless integration of an internal aluminum plate, achieving a flat, edge-to-edge structural connection between panels.
For panels configured with horizontal or vertical groove patterns, the spacing is engineered to two standard configurations:
85 mm spacing
170 mm spacing
Verified thermal resistance: Delivers reliable thermal properties with heat loss coefficients ranging down to $U = 0.51 \text{ W/K.m}^2$ (for 52mm XPS panels).
Lightweight structural load: Highly efficient weight profile, starting at just 4.85 kg/m² to reduce manual handling stress and lower dead-load strain on framing.
Low maintenance: Specialized coatings resist environmental fading and wear, eliminating recurring requirements for weather-sealing, painting, or staining.
Concealed internal joints: The 3mm x 20mm notch option allows fasteners and reinforcing plates to remain hidden, preserving hardware-free architectural lines.
10-year factory warranty: Backed by a standard 10-year manufacturer warranty covering structural panel execution.
Fast installation: Engineered components allow for efficient assembly by installation crews.
